Specifications

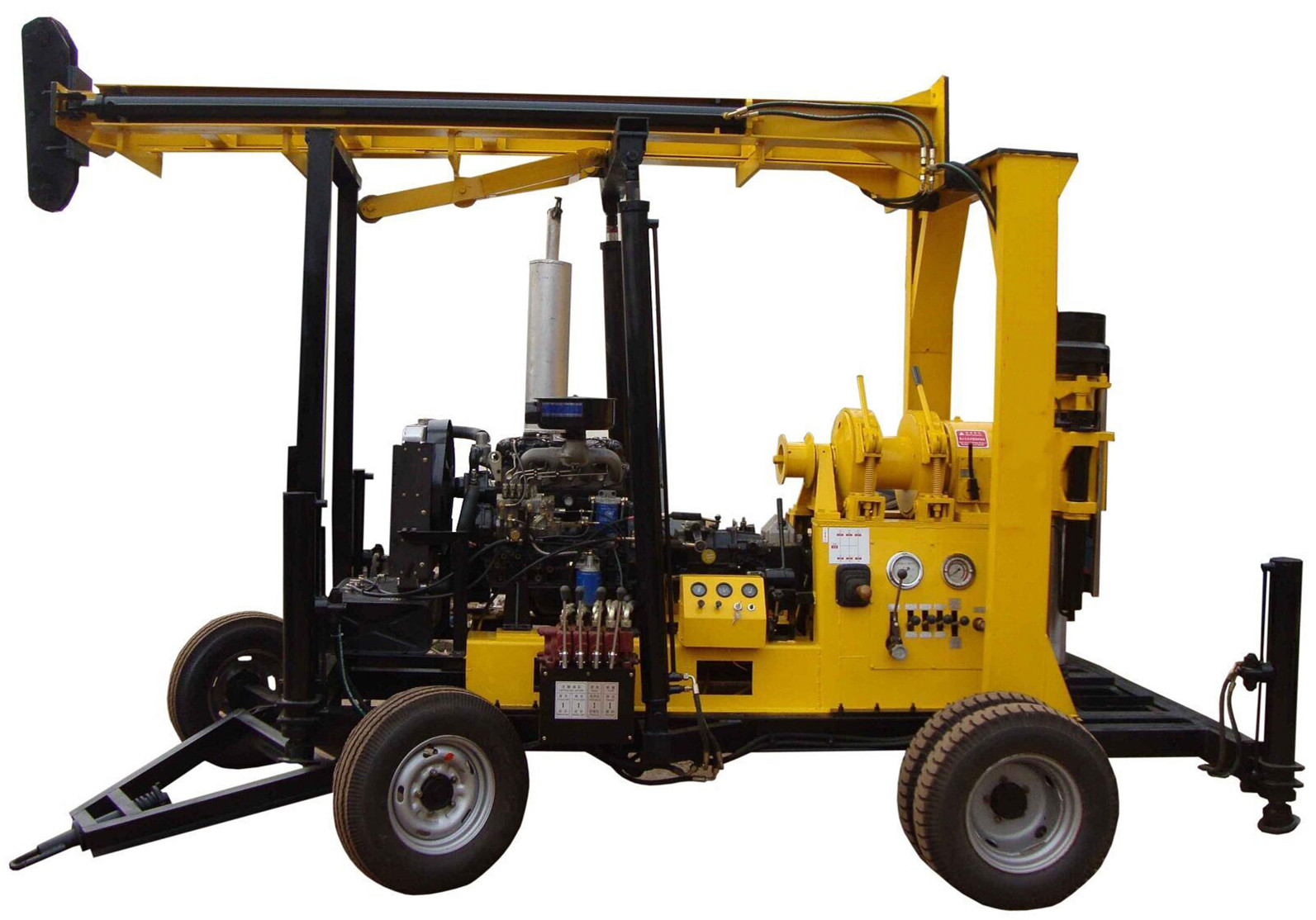

XY-600TF Mining Blasthole Drilling Machinery
1. 600m, 75~500mm
2. automatic control drill tower
3. BW-200 mud pump
New Arrival!!! XY-600TF Deep Mining Blasthole Drilling Machinery for Sale

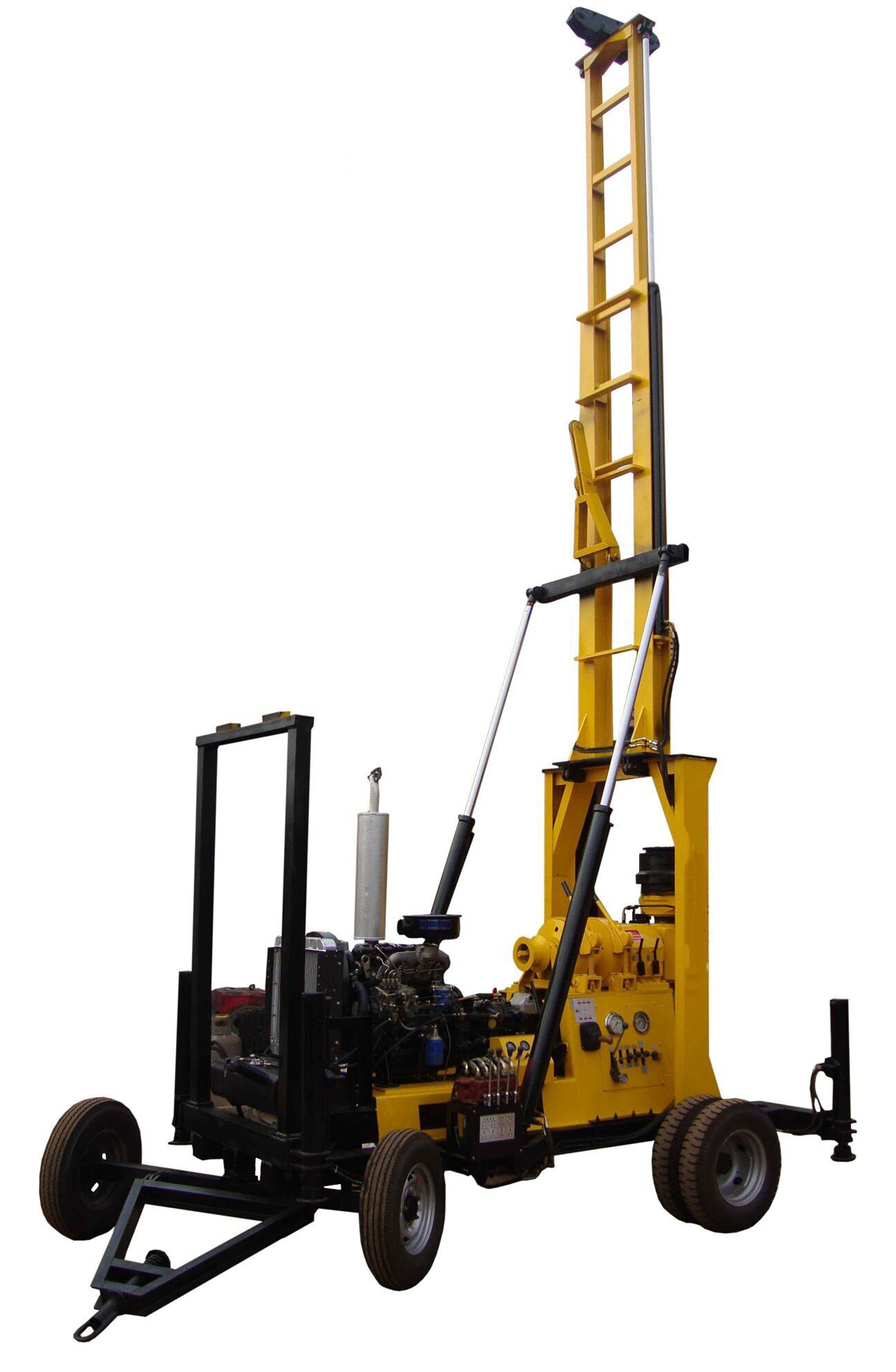

It adopts hydraulic stabilizer legs, a foldable drill tower of hydraulic automatic rise and fall, and a BW-200 or BW-250 mud pump, which greatly improve the working efficiency, reducing the labor intensity.
Drilling Ability:
| Φ75mm drill diameter | 600m depth |
| Φ108mm drill diameter | 500m depth |
| Φ127mm drill diameter | 400m depth |
| Φ159mm drill diameter | 300m depth |
| Φ219mm drill diameter | 210m depth |
| Φ273mm drill diameter | 150m depth |
| Φ500mm drill diameter | 80m depth |
To meet different user requirements, we design different types of XY-600 series:
1. XY-600TF four-wheel trailer-mounted type,
2. XY-600C crawler-mounted self-propelled type,
3. XY-600 truck-mounted type.
We offer different models of drilling rig with different abilities: 100m, 200m, 300m, 400m, 600m, etc.
If you are interested in our water well drilling machinery, please don’t hesitate to contact me.
