I. Application

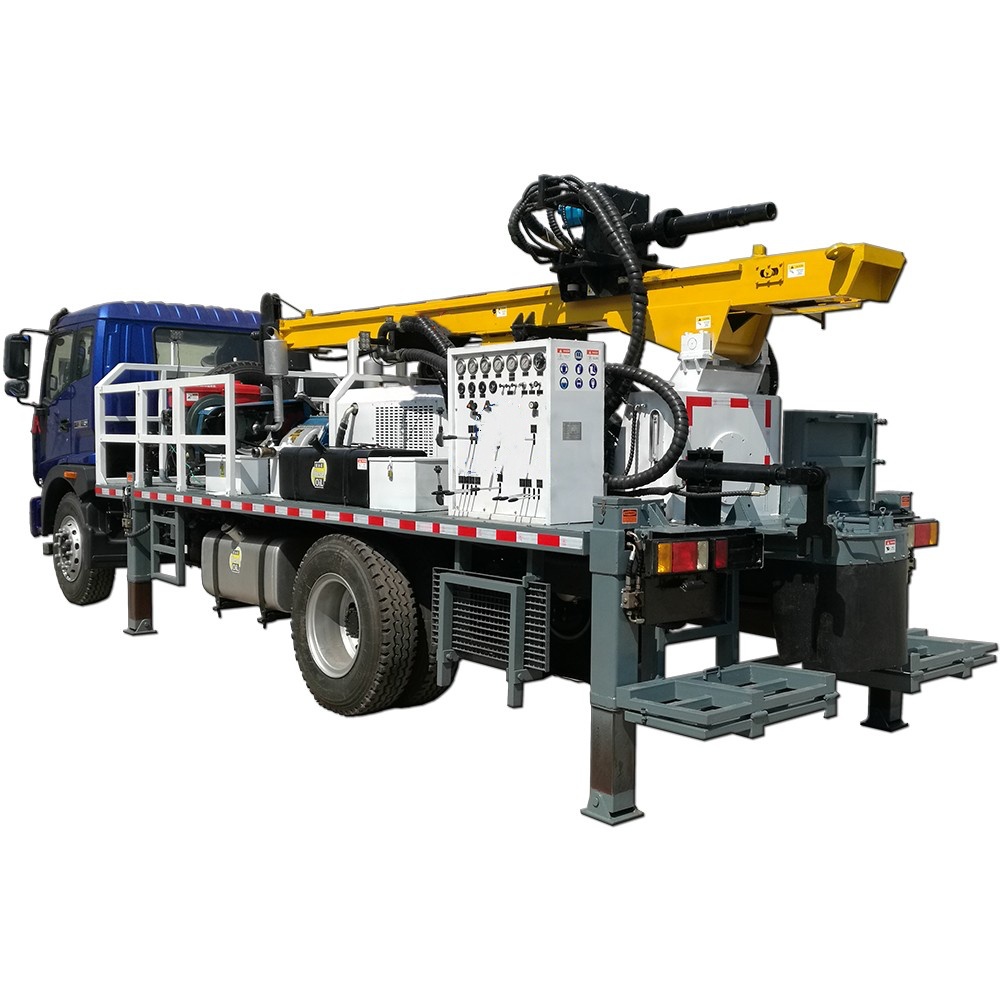

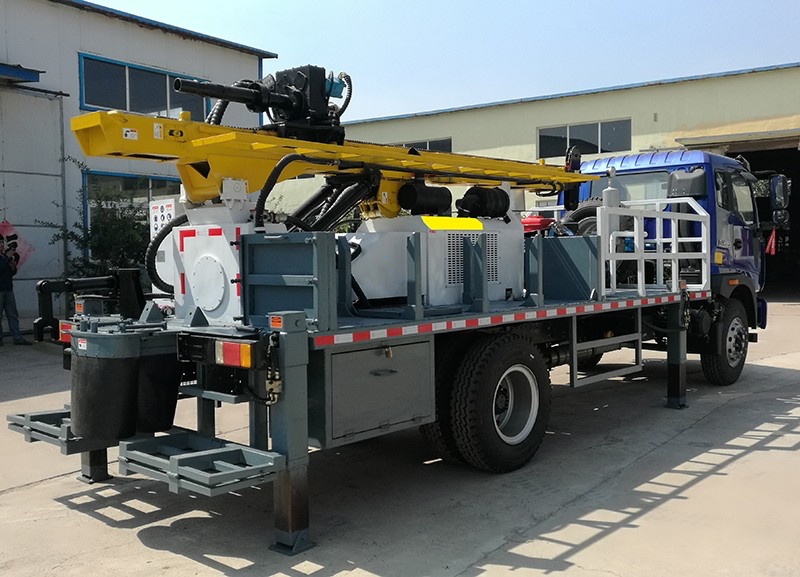

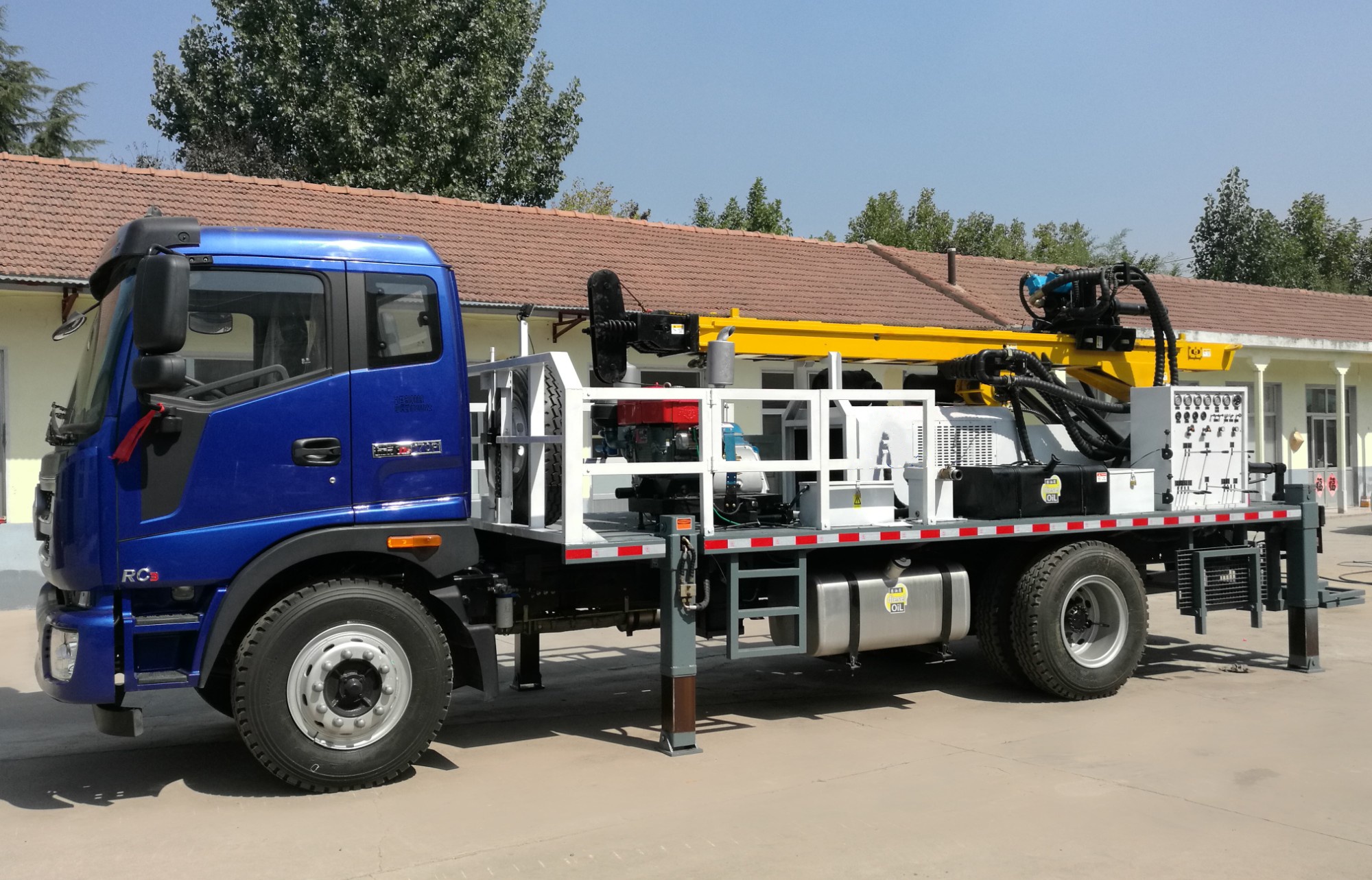

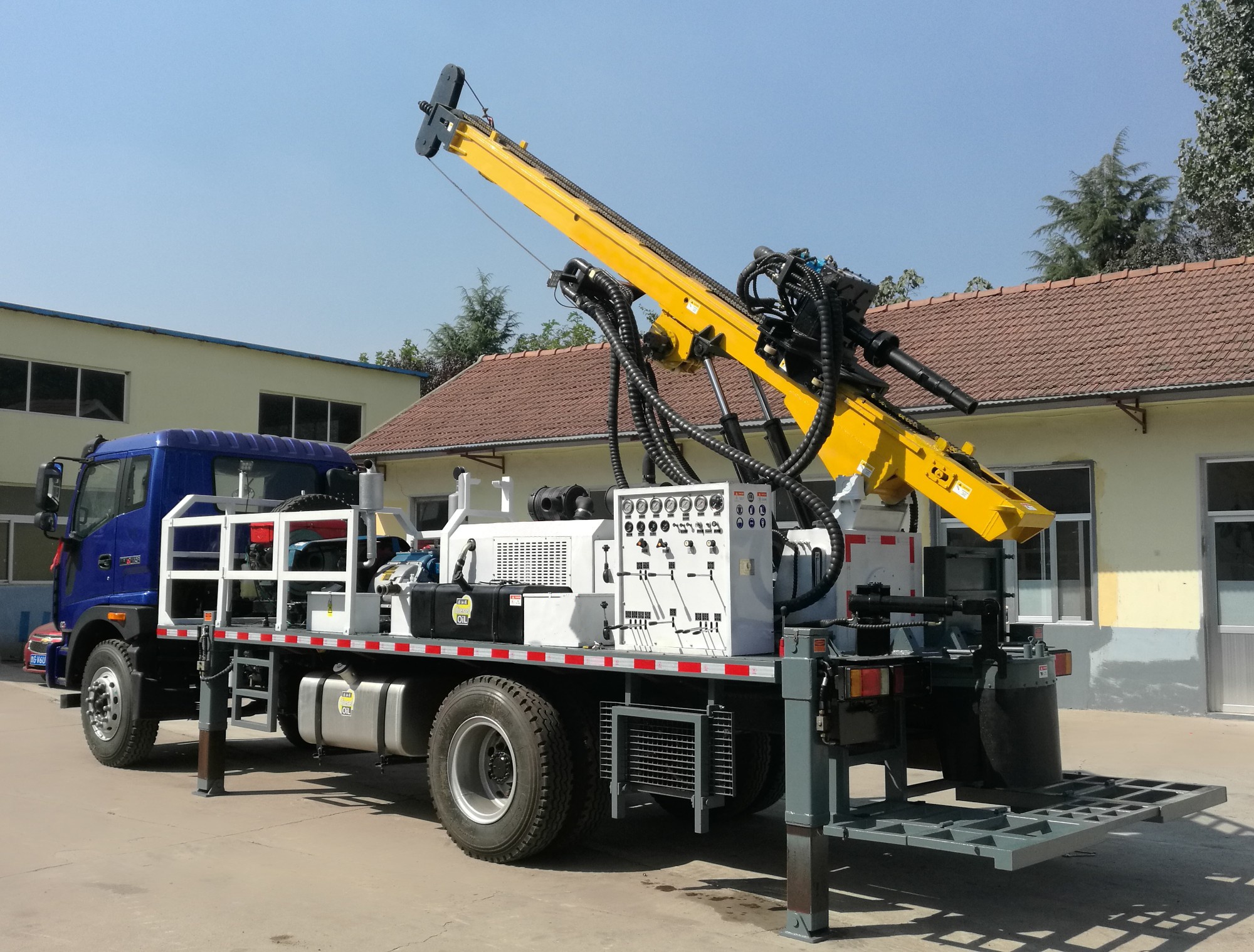

DLQ-200C Multi-functional truck mounted water well drilling rig is a efficient, multi-function full hydraulic machine. It is high efficiency because of having a larger torque of the turntable. It is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working.
II. Technicial Parameter
| I. Main Machine | |
| Drill system and operation | Hydraulic |
| Hole Diameter | Φ125-Φ220mm |
| Hole Depth | 200m |
| Rotation Torque | 2600N.M |
| Rotation Speed | 45-102rpm |
| Drill pipe diameter | 76mm, 89mm |
| Drill pipe length | 3000mm |
| Max. Lifting force | 9.5Ton |
| Max. Feed Speed | 30M/min |
| Feed Stroke | 3400mm |
| II. Winch | |
| Lifting force of hoist | 0.8T |
| Length of steel wire rope(tool winch) | 20m |
| III. Power Supply | |
| Diesel Engine | HUADONG |
| Rated Horse power | 58Kw |
| Electrical System | 24V |
| IV. Air Compressor | |
| Compressor Type | Rotary Screw/Movable |
| Pressure Required | 1.8-2.5Mpa |
| Air consumption | 18-29m³/min |
| V. Truck | |
| Manufacturer | Foton Aoling |
| Rated Horse power | 105HP |
| Discharge Standard | EU-5 |
| Drive type | 4X2 |
| Max.Speed | 90Km/h |
| Steering wheel | left |
| Weight | 7200Kg |
| Dimension | L6200mm*W2150mm*H2500mm |
