Category:
Prefabricated houses
Construction site buildings
Temporary shelter hospitals
Folding container houses
Quick assembly container houses for outdoor living
Application range:
1. On construction sites, folding container houses are often used as temporary dormitories for workers. These houses can be quickly erected and disassembled to adapt to the mobility and seasonal labor needs of the construction site.
2. The construction site also needs office space for project management and supervision. Folding container houses provide a convenient on-site office solution equipped with necessary office facilities.
3. After a natural disaster, folding container houses can be quickly transported to the disaster area to provide emergency resettlement housing for the victims and meet basic living needs.
4. Mining areas are often in remote areas. Folding container houses can be used as temporary residences and offices for miners, which is convenient for mining area management and operation.
5. In some tourist attractions, folding container houses are transformed into holiday cottages to provide tourists with a unique accommodation experience while integrating into the natural environment.
6. In areas where educational resources are scarce, folding container houses can be used as temporary classrooms to solve the problem of students attending classes and improve educational conditions.
Parameters

Technical Parameter
No.	Iitem	Parameter	No.	Iitem		Parameter
1	Roof load	≧0.5KN/㎡	5	Wall deformation		≦300kilograms/m2
2	Flooring load	≧2.5KN/㎡	6	Seismic grade		10-magnitude
3	Aisle load	≧2.5KN/㎡	7	Wind loading		12 level of wind loading
4	Wall side stress	≧1.8KN/㎡	8	Interior dimension		5720x2780x2500mm

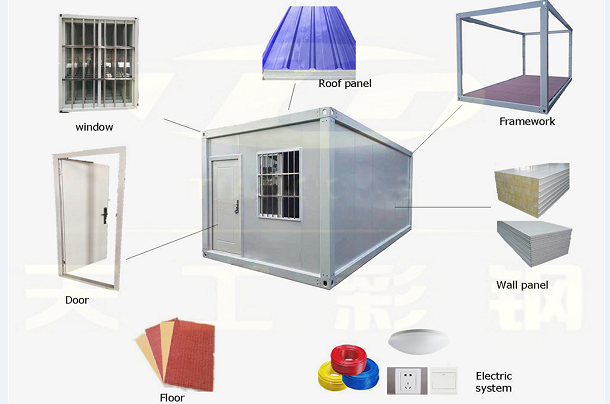

Main materials
Ps:the photo of the material is just for reference
No.	Component Name	Materials		Thickness		specifications（mm） mm

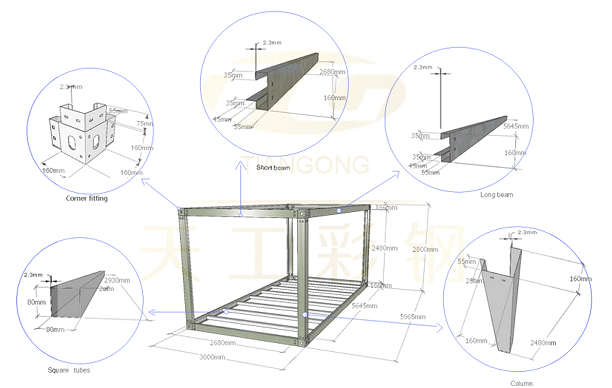

Steel Structure
1	Pillar	Cold formed galvanized steel plate		2.0mm		2480mmx4
2	Top beam	Cold formed galvanized steel plate		2.0mm		5630mmx2
3	Bottom beam	Cold formed galvanized steel plate		2.0mm		5630mmx2
4	Side beams	Cold formed galvanized steel plate		2.0mm		2680mmx4
5	floor purlin	Bottom secondard beam 1 80x80mm		1.5mm		2980mmx4
		Bottom secondard beam 2 40x80mm		1.5mm		2980mmx5
6	corner fitting	Steel corner fitting(Top)		5mm		160mm*160*5mm
7		Steel corner fitting(Top)		5mm		160mm*160*5mm
Wall Panel & Roof Tile
1	Wall panel	50mm Rock Wool sandwich panel, Exterior steel thickness 0.326mm Density of Rock Wool : 80kg		50*0.326	Fireproof Material
2	Roof panel	50mm EPS sandwich panel, Exterior steel thickness 0.326 Density of EPS : 10kg 50mmFoam sandwich panel, double-sided 0.326 steel plate Foam density：10kg		50*0.326	Waterproof Material
3	Roofing Sheet	Prepainted Galvanizd Steel Roofing Sheet 0.426 Thickness		0.426
Door & Window
1	Door	Steel composite door		860x1990mm
2	Window	Aluminum frame sliding window		925*1200mm
3	Floor	18mm Fiber Cement Flooring Board (A1 Fireproof)		18x1144x2780mm
4	PVC Decorative Skirting Line
Electrical Appliance
1	Ceiling Light	LED Light		15W
2	Switch*Plug
3	Circuit breaker
4	Wire and trunking
Accessories
1	Accessories	screw,rivet,bolt and sealant etc
