I. Application

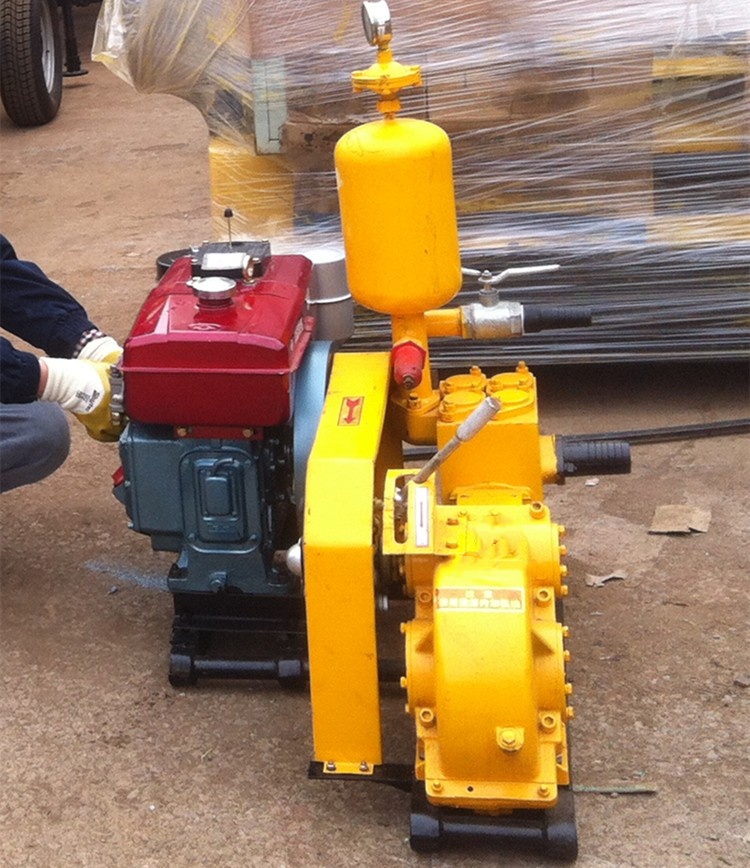

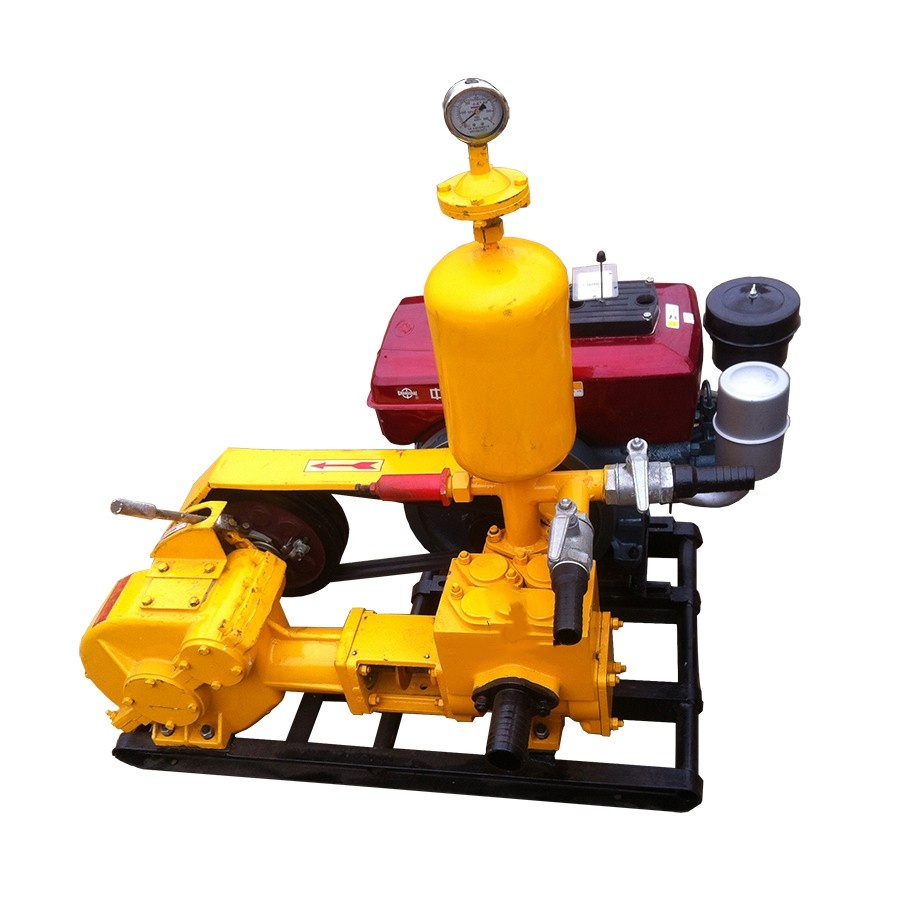

Model BW-160 mud pump is a kind of portable mud pump. The pump is a horizontal single cylinder reciprocating double acting piston pump, has four flow and four kinds of pressure, flow and pressure
Range.
II. Technical Parameter
| No. | Name | Technical Parameters |
| 1 | Model | BW-160 |
| 2 | Number of cylinders | 1 |
| 3 | Cylinder diameter | 95mm |
| 4 | Piston stroke | 85mm |
| 5 | Frequency | 165 time/min |
| 6 | Theoretical flow | 160 L/min |
| 7 | Rated pressure | 1.3Mpa |
| 8 | Volume efficiency | 88% |
| 9 | Belt wheel speed | 951rpm |
| 10 | Power | 5.5kw/8HP |
| 11 | Inlet inside diameter | 42mm |
| 12 | Outlet inside diameter | 32mm |
